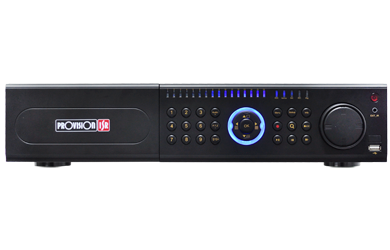

NVR3-32800 (2U) ( 32CH )

32 Channel NVR 32CH 4MP NVR Input: 32 Channel (Via Network) Output: HDMI, VGA 2U Case, 8 HDD Audio In/Out, Alarm In/Out, RS-485 1000Mbps Network

Placeholder

Video:

Input: 32 Channel (Via Network)
Output: Main Monitor (BNC)
VGA: 800x600/1024x768/1280x1024
HDMI: 1920x1080

Recording:

Real-Time 32CH 4MP
FPS: 800 (PAL) / 960 (NTSC)
Resolution: 2048x1536

Playback:

16 Channels Simultaneously

Audio:

Input: Depend on Camera
Output: 1 Channel (RCA)
Mic In: 1 Channel (RCA)
2 Way audio

Storage:

8 x SATA (Up to 6TB)

Network:

RJ-45: 1000Mbps

Alarm:

Input: 16 (Dry-Contact)
Output: 4 (Dry-Contact)

PTZ / Keyboard:

2 x RS485



MODEL

TITLE

DOWNLOAD

NVR3-32800(2U)

Specification






MODEL

TITLE

DOWNLOAD

NVR3-32800(2U)

Hướng dẫn NVRs v3.4.3 và cao hơn


NVR3-32800(2U)

Hướng dẫn NVRs v3.3.0 và thấp hơn


NVR3-32800(2U)

Phiên bản Firmware


NVR3-32800(2U)

CMS cho Windown


NVR3-32800(2U)

CMS cho Mac


NVR3-32800(2U)

IP Tool


NVR3-32800(2U)

Codec


NVR3-32800(2U)

SuperPlay
