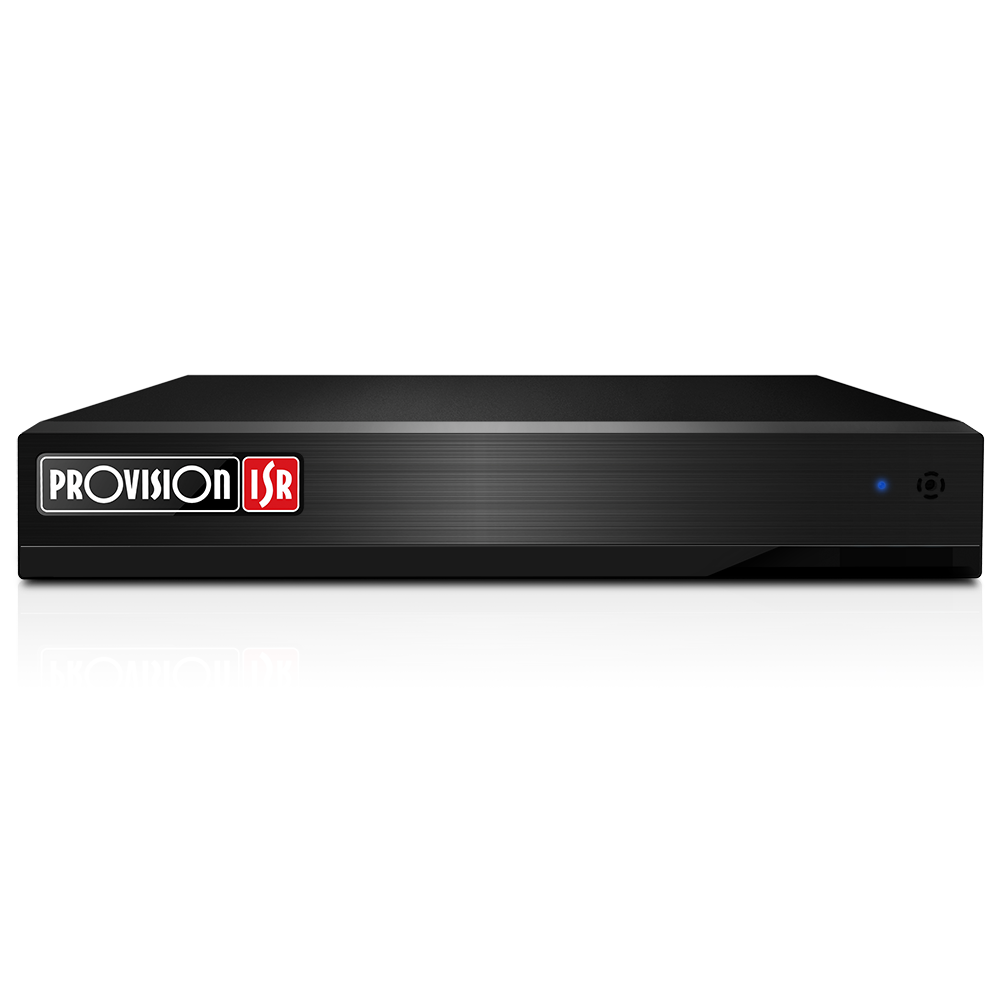

SH-4100A5N-2L(MM)
Video:
Input: 4CH AHD Standard BNC + 2CH IP (Over Network)
Output: HDMI(1920x1080), VGA (1280x1024, 1024x768), CVBS(Spot)
Recording:
IP: 3MP and lower: 30/25FPS Per Channel
AHD: AHD 2MP lite / 1MP: Up to 30/25FPS Per Channel
TVI: 2MP lite / 1MP: Up to 30/25FPS Per Channel
CVI: 2MP lite / 1MP: Up to 30/25FPS Per Channel
CVBS: CVBS: 960H: Up to 30/25FPS Per Channel
Playback:
4 Channel Simultaneously
Audio:
Input: 1 Channel (RCA)
Output: 1 Channel (RCA)
2 Way audio
Storage:
1 x SATA (Up to 6TB)
USB Port:
2 x USB2.0
Network:
RJ-45: 100Mbps
PTZ / Keyboard:
Supported Protocols: Pelco D, Pelco P, Samsung, Visca, ONVIF, CoC
